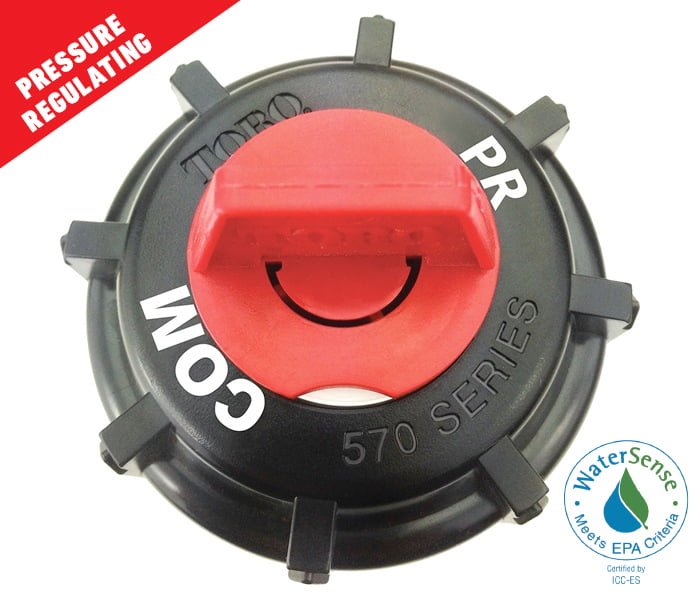

570ZPR Series
Overview
This pressure regulating model is ideal for applications with high wind or varying operating pressures.
Specifications
- Radius
0.6 to 5.2 metres (2′ – 17′) - Flow
0.2 to 13.1 L/min
- Recommended Operating Pressure
2.1 – 5.2 BAR (30-75 PSI) - Inlet
1/2″ (12 mm) female threaded
- Pop-Up Height
100 mm (4″), 150 mm (6″), 300 mm (12″) - Body Diameter
35 mm (1 3/8″) except 12P: 41 mm (1 5/8″) & 12P SI: 45 mm (1 3/4″)
- Cap Diameter
50 mm (2″)
- Body Style
Side inlet option
