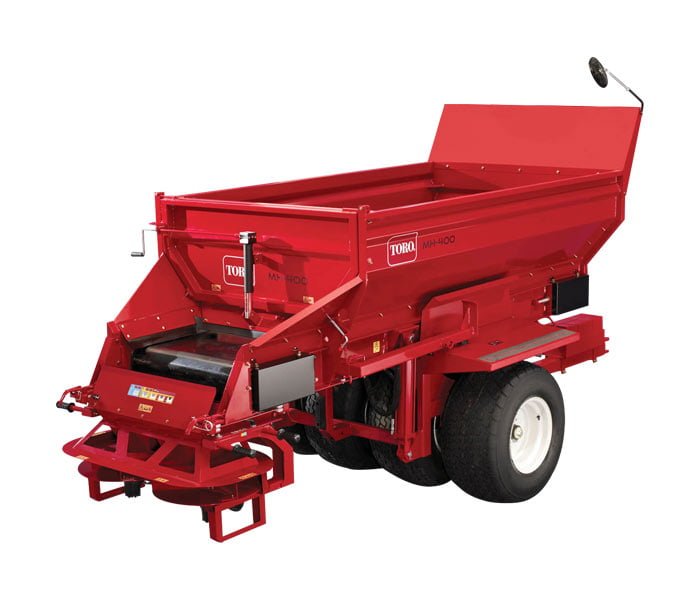

MH-400 Topdresser
Overview
The Toro MH-400 , an equipped material handler with top-dressing, cross- conveyor, material delivery & hauling/ transport. By including MH 400 in daily tasks , it reduces labor, saves time and cuts operating cost.
Features
Spread Consistency
Evenly apply materials to the turf from 9 ft (2.74 m) to 40 ft (12.2 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.Color Coded Operating System
Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.Walking Beam Suspension
A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.Easily Adjustable Tailgate
The infinitely adjustable tailgate opens and closes with ease, even with sand underneath.Brakes
2-wheel electrically powered, drum style brakes provide enhanced control in various terrain. Also available in 4-wheel brake configuration.Smooth Belt
Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.
Specifications
- Application Rate
Ultra Light to Ultra Heavy - Belt
Single piece, vulcanized, self-tracking (no seams)
- Hopper Capacity
4 yd³ (3.06 m³) - Spreading Width
9 ft (2.74 m) to 40 ft (12.2 m)
