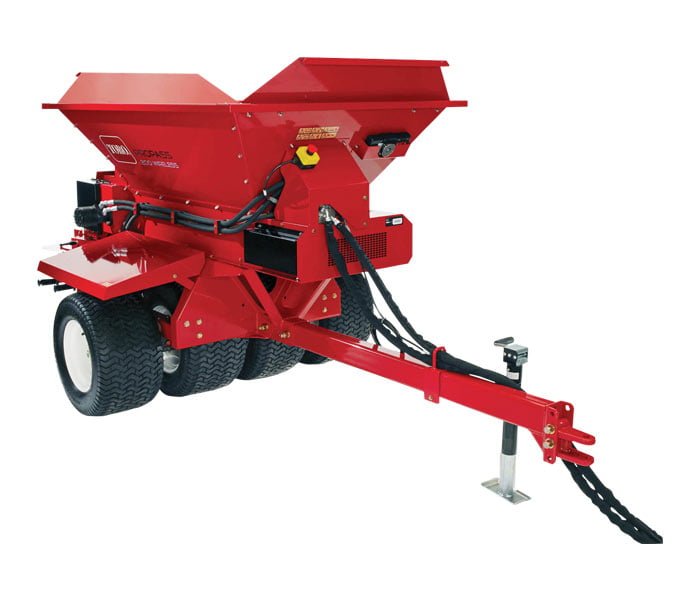

ProPass 200 Topdresser
Overview
The Toro Propass 200, a towed type broadcast – style top dresser , with ultimate application versatility. Deliver extremely accurate spread patterns from ultra – light to heavy aeration filling application.
Features
Available Wireless Controller
Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).Color Coded Operating System
Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.Spread Consistency
Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.Twin Spinner Angle
The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.Walking Beam Suspension
TA unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.Wedge Style Tailgate
Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.Smooth Belt
Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.Versatility
Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.Vehicle Mount or Tow Models
The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.
Specifications
- Application Rate
Ultra Light to Ultra Heavy - Belt
Single piece, vulcanized, self-tracking (no seams)
- Hopper Capacity
21 ft³ (.54 m³) level, 25 ft³ (.71 m³ heaped) - Spreading Width
9 ft (2.7 m) to 30 ft (9.1 m)
