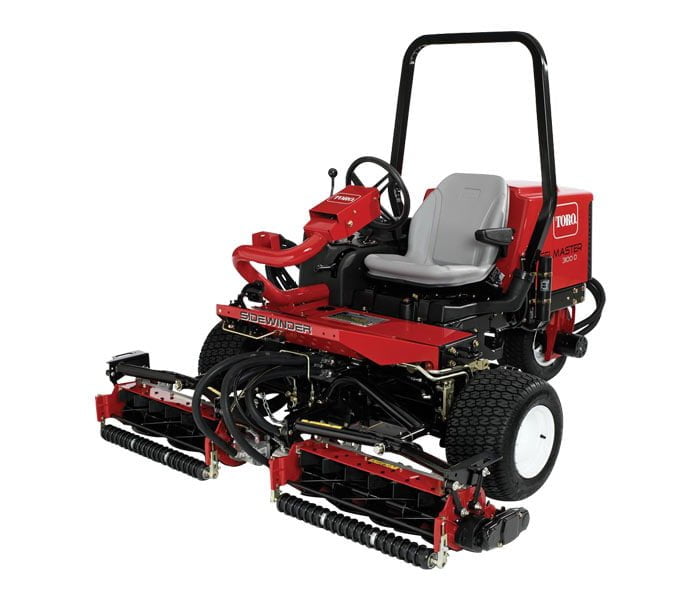

Reelmaster® 3100-D Mower
Overview
The Reelmaster® 3100 is a revolutionary triplex mower designed for superior traction and cutting unit performance on all types of turf. The optional Sidewinder® cutting unit control system can be shifted right and left, on the fly, to vary the tire tracks. A powerful Kubota® 21.5 hp (16 kW) engine and the Series/Parallel 3WD traction drive system provide the power and traction to get the mowing job done quickly. The operator area is designed for optimal operator view and all day mowing comfort. And mechanics will appreciate the fast and easy access to all service items.
Configuration Options:
- Reelmaster 3100-D Diesel Powered with Sidewinder
- Reelmaster 3100-D Diesel Powered with Fixed Heads
Features
Powerful Engine
With a 21.5 hp (16 kw) Kubota® Diesel Engine, the Reelmaster® 3100-D has the power to climb and power to cut through difficult mowing conditions.Superior Traction
There’s no need to worry about mowing around objects while traversing hills, even in wet terrain. The parallel hydraulic flow between front and rear wheels assures full-time 4-wheel drive. And the individual wheel brakes provide effective traction assistance on wet turf.Sidewinder®
Sidewinder cutting units shift left and right a total of 24 inches (61 cm). This allows the tire tracks to be shifted within the mowing path to reduce wear on the turf.Ease of Service
With the engine located in the rear of the machine, the Reelmaster® 3100-D is easy to service. Open the engine compartment to have access to all filters, fluids and engine components for fast preventative maintenance.Out-Front Operator
The operator sits out-front on the Reelmaster® 3100-D for better mowing visibility and easier access getting on and off the machine. Engine noise, vibration, and exhaust are all located behind the operator.72″ or 85″ Width of Cut
The Reelmaster® 3100-D is available in a 72″ or 85″ (183 cm or 216 cm) width of cut. With a choice of 5, 8, and 11 blade reels and adjustable reel speed control, this mower can be configured to meet all mowing applications.EdgeSeries™ Reels
Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
Specifications
- Engine
21.5 hp (16 kw) Kubota® Diesel - Fuel Capacity
7.5 gal (28.4 L)
- Mowing Speed
0 – 6 mph (10 km/h) - Transport Speed
0 – 9 mph (0 – 15 km/h)
- Cutting Width
72 in or 85 in (1.8 m or 2.1 m) - Adjustment
Dual point bedknife to reel
- Backlapping
Standard on-board - Cutting Units
Dual Precision Adjustment (DPA) Cutting Units
- Height of Cut
.25″ to 2.5″ (6.4 mm to 50.8 mm) - Reel Diameter
7 in (18 cm)
- Number of Blades
5, 8, and 11 blade - Reel Drive
Hydraulic
- Reel Length
27 or 32 in (69 or 81 cm) - Reel Speed
Adjustable – 1000 RPM max
- Traction Drive
Series / Parallel 3WD - Weight
Approx. 1,860 lbs. (840 kg)
