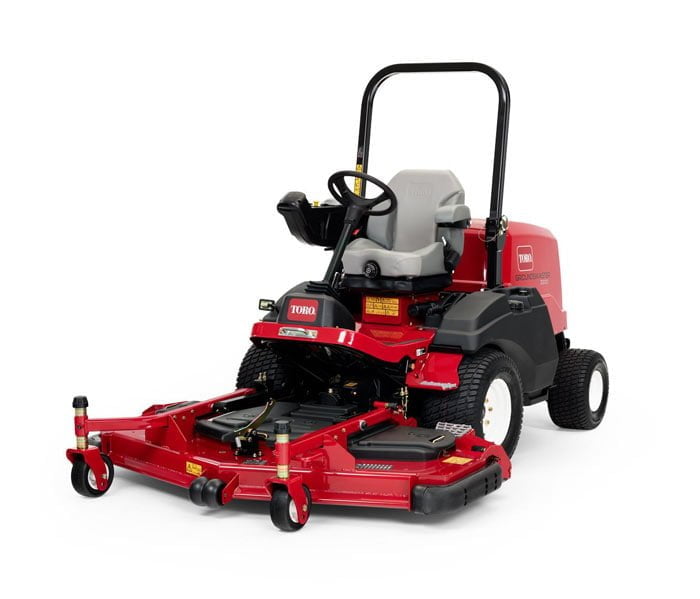

The GroundsMaster 3200/3300
Overview
The Groundsmaster 3200/3300 delivers unparalleled productivity. Featuring a powerful 37.4hp (27.9 kW) or 24.7hp (18.4 kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3200/3300 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column, the fingertip engine controls and optional all-season cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3200/3300. The innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the all-new Groundsmaster 3200/3300.
Features
Powerful Yanmar Engines
Powerful Tier 4 / Stage V compliant Yanmar diesel engines provide you with either 24.7hp (18.4 kW) or 37.4hp (27.9 kW).Simple Maintenance
Innovative tip-up design makes maintenance and cleaning simple. Rotary decks tilt almost 90º while keeping the driveline intact.Easily Move Between Jobsites
With ground speeds up to 15 mph (24 km/h) and 7.8″ (19.8 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.CrossTrax®
Power through challenging conditions with increased traction from the CrossTrax® all-wheel drive system, which optimizes power distribution to each wheel individually.Tackle Any Terrain
Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for any conditions.Superior Operator Comfort
Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.Optional All-Season Cab
Add year-round versatility. Move snow, clear debris, spread salt… all from the comfort of the optional cab.7-Gauge Welded Steel Decks
The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.InfoCenter Control Panel
Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips for ultimate control.Folding Rollover Protection System (ROPS)
A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.Industry’s Toughest Spindle Assembly
The cast iron spindle housings feature a massive 9 inch (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. Combine that with the high-efficiency, tapered roller bearings that offer greater durability than spindles that use ball bearings. The result is greater stability and strength, providing longer deck and spindle life.Steel Blades
The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.
Specifications
- Fuel Capacity
12 gal (45.4 L) - Cutting Width
60 inch (152cm) to 72 inch (183 cm)
- Deck Drive
Solid mounted, splined PTO-driven gearbox transfers power to three separate spindles via one “B” section belt - Drive System
2WD Parallel hydraulic traction system or Patented CrossTrax® AWD series parallel hydraulic traction system w/full time, bi-directional 4-wheel drive
- Engine Horsepower
24.7hp or 37.4 hp (18.5 or 27.9kW) - Ground Speed
0 up to 15 mph (0 – 24 km/h)
- Height
89″ (226 cm) - Height of Cut
1”-6” (25 – 152 mm) adjustable in 0.25” (6 mm) increments.
- Length
107″ (271.7 cm) - Tilt Steering
Tilt steering wheel released and locked by a foot actuated lever
- Tires
GM3300: Front: 24 x 12 – 12, 4-ply, Rear: 18 x 9.5 – 8, 4-ply GM3200 2WD: Front: 23 x 10.5 – 12 4-ply, Rear: 16 x 6.5 – 8, 4-ply GM3200 AWD: Front: 23 x 10.5 – 12 4-ply, Rear: 18 x 9.5 – 8, 4-ply - Weight
1,751 lbs. (794 kg) to 2,486 lbs. (1128 kg)
- Width
53.1″ (134.8 cm)
